Name: IEC62133/UN38.3/CE/ROHS Certified 103450 1800mAh 3.7V lithium polymer battery for GPS tracker
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

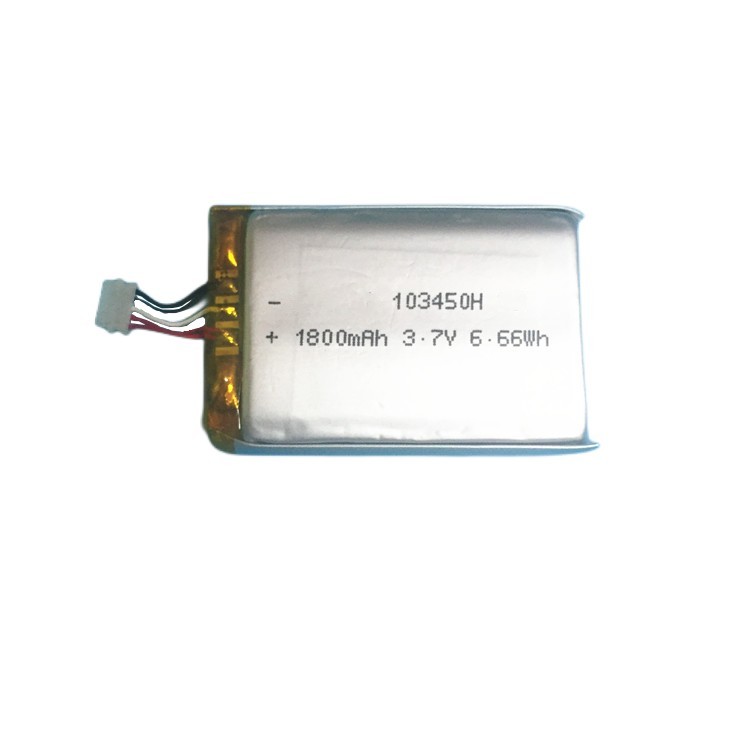

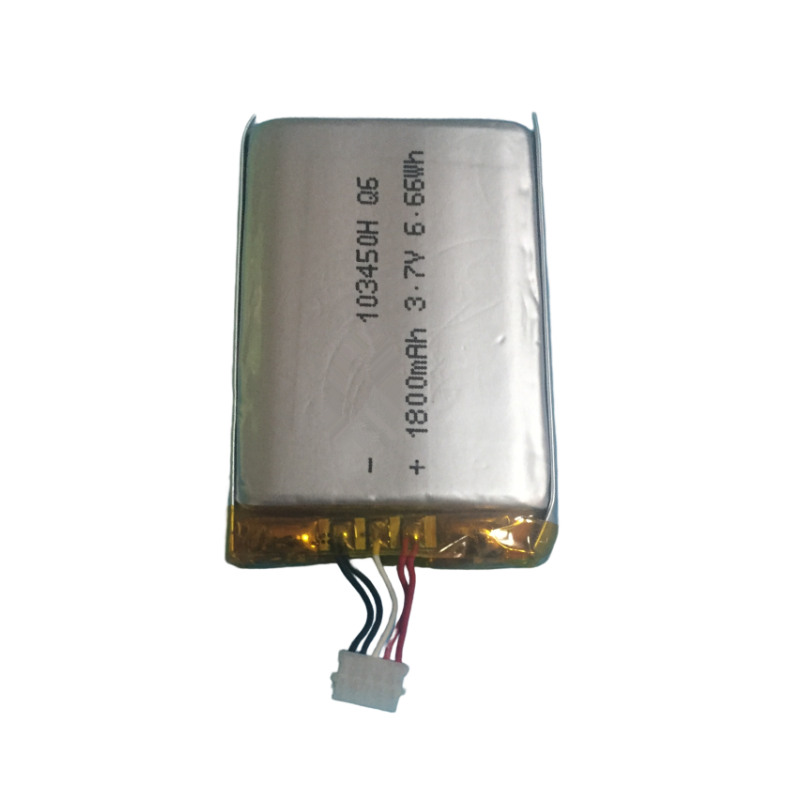

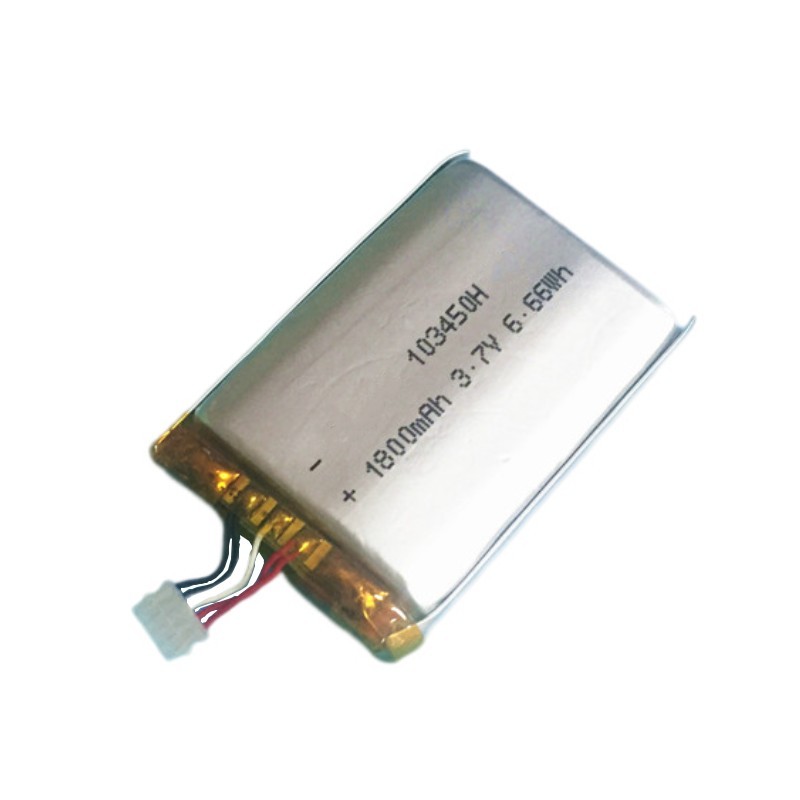

IEC62133/UN38.3/CE/ROHS Certified 103450 1800mAh 3.7V lithium polymer battery for GPS tracker

Cell model: 103450
Nominal Voltage: 3.7V
Nominal Capacity: 1800mAh
Max Dimensions: 10.2*34.5*52mm
Warranty: 1 year
Certificate: CE， RoHS， UN38.3， IEC62133， MSDS， etc.
Sample L/T: 14-15 days， Mass Production L/T: 30-35 days

Description

Power Positioning for Compact GPS Tracking Terminals
This 103450 1800mAh lithium polymer battery is engineered as the primary power source for compact GPS tracking devices used in asset tracking, personal positioning, vehicle monitoring, and portable telematics equipment. Its slim pouch structure enables flexible mechanical integration into ultra-thin GPS housings where cylindrical cells cannot fit. As a high-stability lithium battery, it delivers consistent 3.7V output for RF modules, GNSS chips, and communication transmitters that require uninterrupted power during continuous data transmission. Device manufacturers and system integrators benefit from predictable runtime behavior, reduced voltage fluctuation, and improved tracking reliability under mobile operating conditions.

Electrical Parameters, Safety Certification, and Core Performance
Built on a nominal 3.7V architecture with a rated capacity of 1800mAh, this 3.7v rechargeable lithium polymer battery delivers controlled discharge suited for low-to-mid current GPS workloads. The internal protection structure governs overcharge, over-discharge, overcurrent, and short-circuit conditions, ensuring safe operation throughout extended duty cycles. The battery is certified to IEC62133, UN38.3, CE, and RoHS standards, enabling compliant deployment in international shipments and regulated device markets. For clients working with lithium polymer battery manufacturers, these certifications simplify downstream product approvals and cross-border logistics without additional compliance risk.

System-Level Value for Tracking Hardware and Connected Devices
For OEMs cooperating with lithium battery manufacturers, this model offers a standardized energy unit suitable for mass production of GPS trackers, smart tags, and mobile positioning terminals. Its stable voltage curve supports precise RF signal control and transmission timing, improving location accuracy and data continuity. The balance of capacity, size, and weight allows device designers to optimize standby time without enlarging product form factors. As a custom lithium battery solution, it can be adapted in terms of wire length, connector type, and protection thresholds to match diverse GPS hardware platforms.

Item	Specifications	Remark
Model No.	103450-1800-1S1P
Nominal Voltage	3.7V
Nominal Capacity	1800mAh	Standard discharge after standard charge
Dimensions	10.234.552mm max	ThicknessWidthLength
Cycle Life	≥800 times	≥ 80% of the initial capacity
Charge Method	CC/CV	lithium battery special charger
Charge Cut-off Voltage	4.2V
Discharge Cut-off Voltage	3.0V
Standard Charge Current	0.2C
Standard Discharge Current	0.2C
Max Continuous Charge Current	0.5C
Max Continuous Discharge Current	1C
Max Peak Discharge Current	2C
Recommended Operation Ambient Temperature	Charge: 0~45℃ Discharge:-20~60℃
Storage Temperature	-20℃~25℃	12 months
	-20℃~45℃	3 months
	-20℃~60 ℃	1 month
Internal Resistance	≤300mΩ
Weight	Approx. 29g

-High Safety
-Real Capacity
-Flexible size， lightweight， customizable
-800+ Lifecycles
-Factory Direct price，High quality with certifications
-14-years manufacturing experience

Bluetooth speaker, bluetooth headset, smart home controller, smart secuirty device, intelligent door lock, smart glass, gps tracker, parking device, medical device, POS machine, wearable device, IoT device, sensor, handheld device, alarm system, beauty device, etc.

Use Scenarios

Fleet Tracking Operators Managing Distributed GPS Devices
Fleet operators responsible for thousands of GPS trackers require batteries that deliver consistent uptime across vehicles operating in varied environments. This lithium polymer battery supports extended positioning cycles for asset tracking devices installed in logistics trucks, rental vehicles, and service fleets. The stable discharge behavior of this lithium battery prevents communication dropouts that could disrupt route monitoring, speed analysis, and driver behavior recording systems.

Personal Locator Device Developers and Product Engineers
Product engineers designing wearable GPS trackers for elderly care, child safety, or pet monitoring require slim batteries with predictable energy behavior. This 3.7v rechargeable lithium polymer battery allows designers to minimize device thickness while preserving sufficient standby and active tracking runtime. By sourcing through qualified lithium polymer battery manufacturers, engineers achieve consistent performance across production batches and avoid unexpected power variation during long-term user operation.

Security System Integrators Deploying Mobile Tracking Units
System integrators deploying portable GPS-based monitoring units for security patrols, movable assets, or mobile surveillance rely on batteries that perform reliably across repeated charge cycles. This lithium battery supports daily charging without rapid capacity decay, ensuring consistent field operation. With access to wholesale lithium polymer battery supply channels, integrators can maintain uniform power performance across large volumes of deployed tracking equipment.

FAQ

Is this battery suitable for continuous GPS positioning?
Yes, it is designed for stable discharge under continuous low-to-mid current GPS workloads.

Does the battery include built-in protection?
Yes, it includes protection against overcharge, over-discharge, overcurrent, and short circuit.

Can the battery be customized with different connectors or cables?
Yes, it supports custom lithium battery configuration for connectors, cable length, and protection thresholds.

Is this model compliant with international transport regulations?
Yes, it complies with IEC62133, UN38.3, CE, and RoHS standards.

Is this battery available for bulk procurement?
Yes, project-based and wholesale lithium polymer battery supply options are supported.

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
