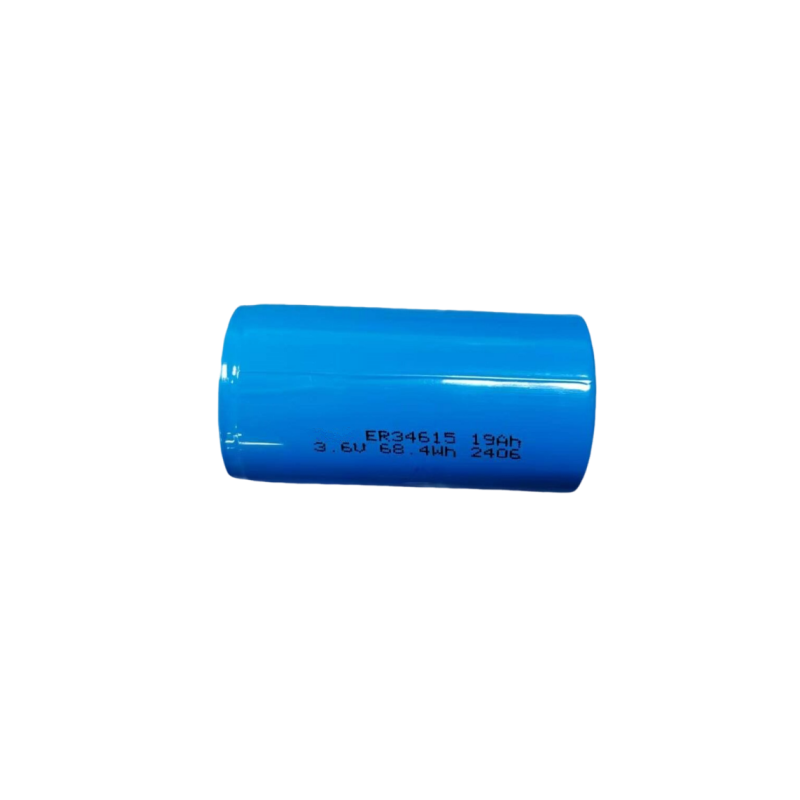

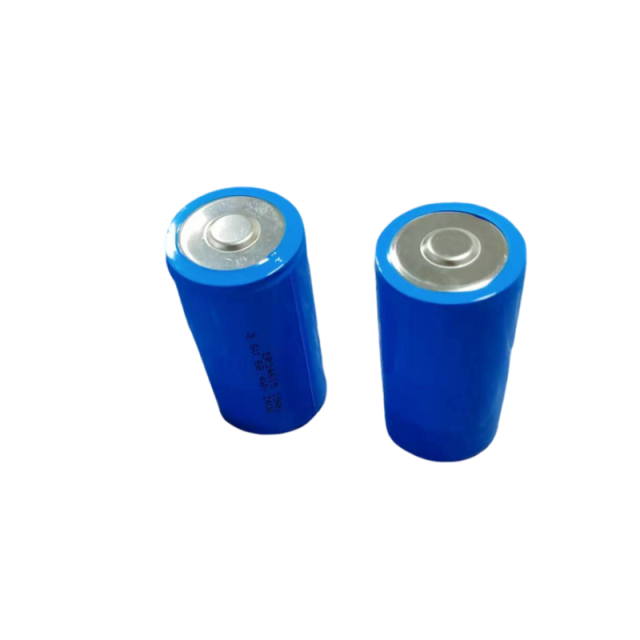

Explosion-Proof ER34615 3.6V D Size 19Ah Li-SOCl2 Battery

Name: Explosion-Proof ER34615 3.6V D Size 19Ah Li-SOCl2 Battery
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Model: ER34615
Nominal Voltage: 3.6V
Nominal Capacity: 19000mAh
Max Dimensions: 34.0*65.0mm
Operating Temperature Range: -55℃~+85℃
Certificate: CE， RoHS， UN38.3， MSDS， etc.
Used in sectors: Petrochemical， Utilities， Mining， Sewage， Flour Mills

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	ER34615	Explosion-Proof Li-SOCl2 battery
Nominal Voltage	3.6V
Nominal Capacity (660Ω/5mA，2.0V cut-off)	19000mAh	The tested capacity varies with discharge current, temperature, and cut-off voltage.

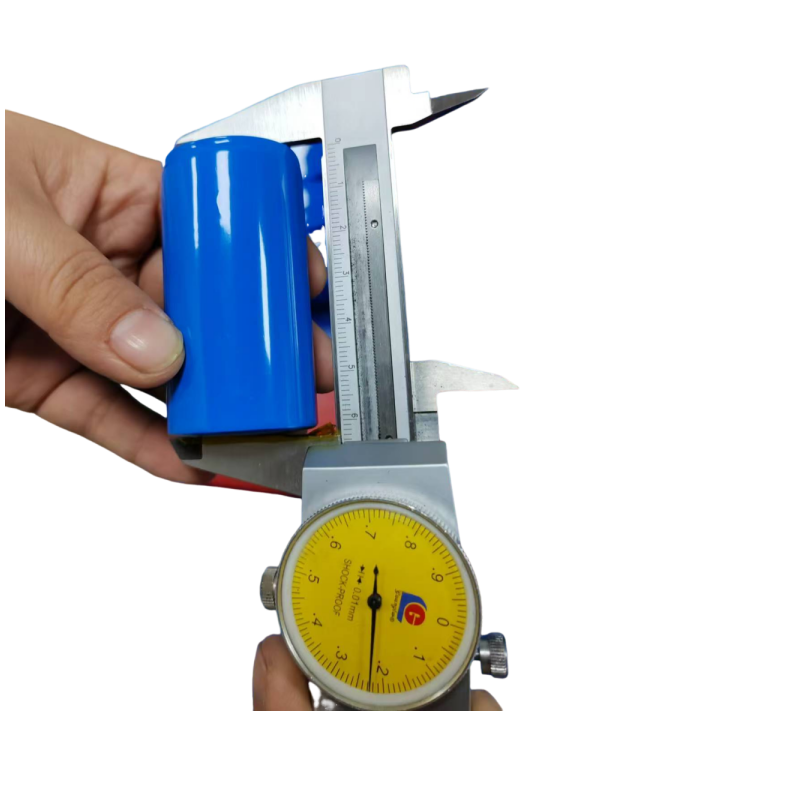

Max Dimensions	34.0*65.0mm	Diameter*Height
Weight	100g
Standard Discharge	5mA
Max Continuous Discharge Current	230mA	50% nominal capacity at 25±2℃, cut-off voltage 2.0V
Max Pulse Discharge Current	400mA
Discharge Cut-off Voltage	2.0V
Operating Temperature Range	-55℃~+85℃
Storage Life	≥10 years
Self-discharge Rate	≤2%	after 1 year storage at 25℃
Structure	Bobbin Type	High Energy

-High and stable operating voltage

-Wide operating tempearture: -55℃~+85℃

-High energy density: More than 650Wh/Kg， about 3-10 times of other series lithium battery.

-Good sealing: hermetic glass-to-metal sealing

-Safety and energy saving， environmental protection and no harm

-More than 10 years storage life

Smart electricity meters, water meters, heat meters, gas meters, memory backup, clock power supply, data backup power supply, smoke alarm, temperature monitor, gps tracker, marine telemetry system, tire pressure monitoring system, ETC(non-parking toll system), automatic instrumentation equipment, oil Wells, mines, medical instruments, anti-theft alarm, wireless communication, sea lifesaving, aviation, aerospace, marine electronics.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate
