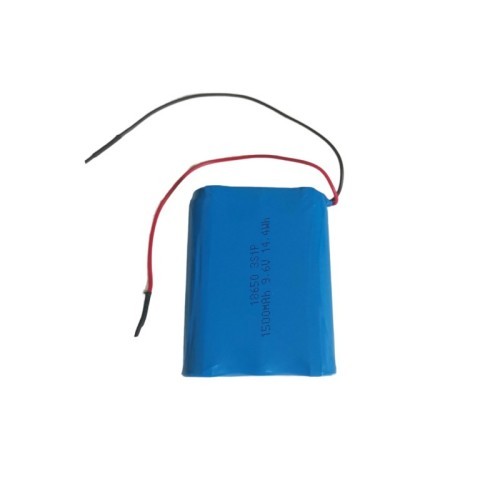

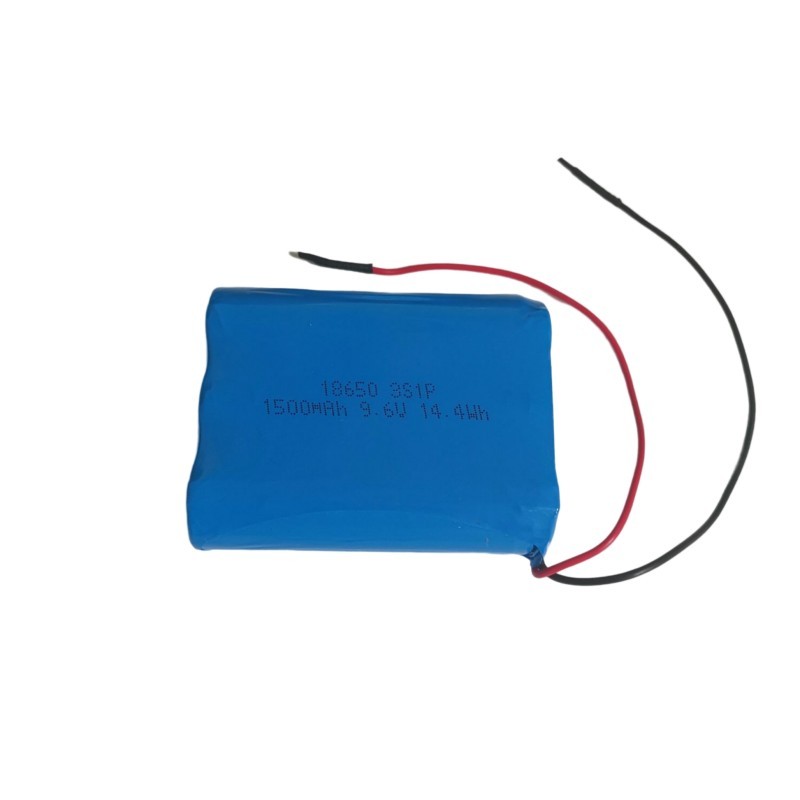

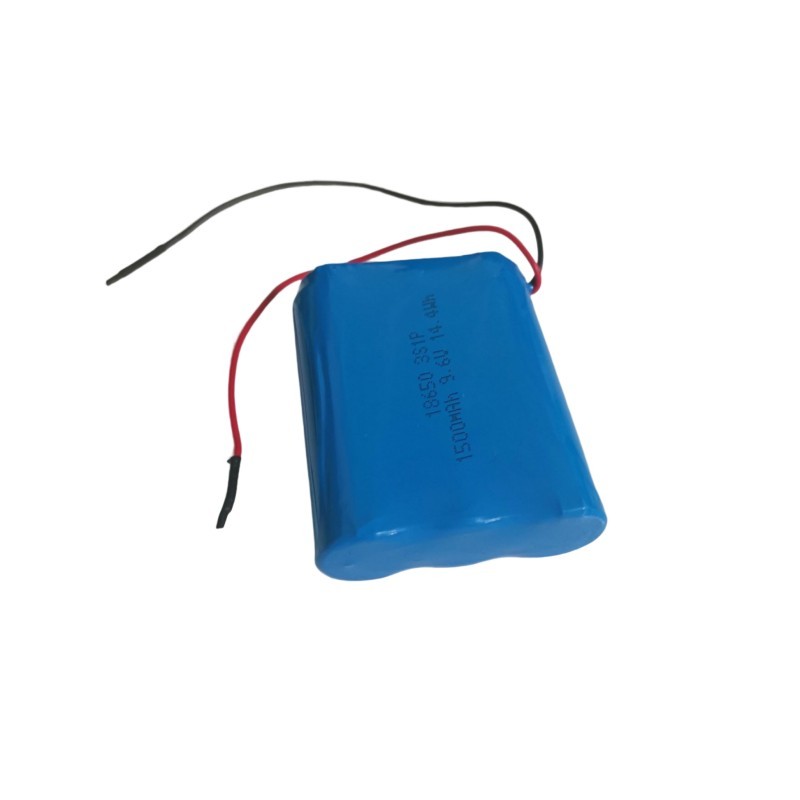

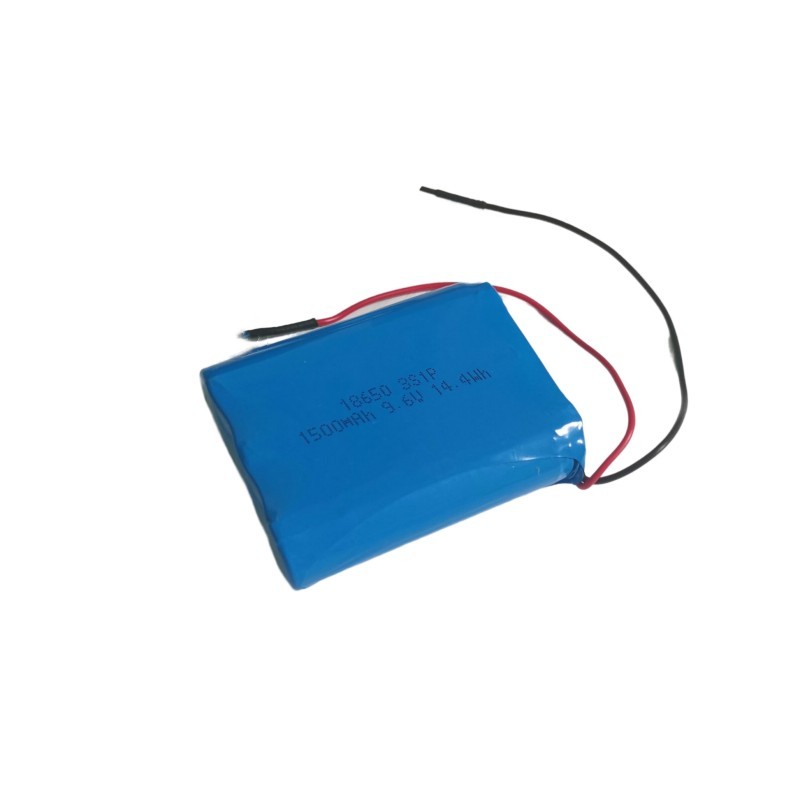

Name: Customized LiFePO4 18650 9.6V 1500mAh battery pack LFP 18650 lithium iron battery pack
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Brand: iBorn
Nominal Voltage: 9.6V
Nominal Capacity: 1500mAh
Max Dimensions: 19.5*56.1*71.0mm
Certificate: CE， ROHS， UN38.3， IEC62133， etc
Warranty: 3 years

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	LF18650-1500-3S1P
Nominal Voltage	9.6V
Nominal Capacity	1500mAh	@0.2C discharge
Dimensions	19.556.171.0mm max	ThicknessWidthLength
Cycle Life	≥6000 times	≥ 80% of the initial capacity
Charge Method	CC/CV with lithium battery special charger
Charge Cut-off Voltage	10.95V
Discharge Cut-off Voltage	7.5V
Standard Charge Current	0.3A
Standard Discharge Current	0.3A
Max Continuous Charge Current	1.5A
Max Continuous Discharge Current	1.5A
Max Peak Discharge Current	4.5A
Recommended Operation Ambient Temperature	Charge: 0~45℃, Discharge: -20~60℃
Storage Temperature	-20℃~25℃	12 months
	-20℃~35℃	3 months
	-20℃~45 ℃	1 month
Internal Resistance	≤260mΩ
Weight	Approx. 170g

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
