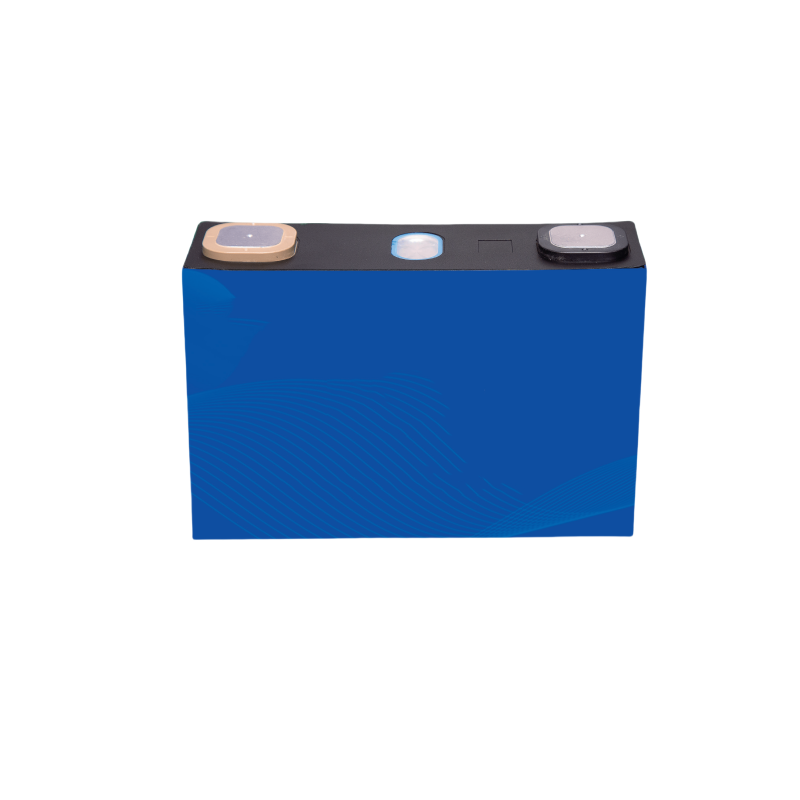

Name: Brand New A Grade LFP54173113 3.2V 105Ah LiFePO4 Cell
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Model: 54173113
Nominal Voltage: 3.2V
Nominal Capacity: 105Ah
Dimensions: 54.3*174.8*113.96mm
Certificate: CE， ROHS， UN38.3， IEC62133， etc.
Warranty: 3 years

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	54173113	LiFePO4
Nominal Voltage	3.2V
Nominal Capacity	105Ah
Dimensions (ThicknessWidthHeight)	54.3(±1.0)mm174.8(±0.6)mm113.96(±0.6)mm	Height including pole: 118.13(±0.6)mm
Weight	2170±100g
Cycle Life	≥6000 times	Higher than 80% of the Initial Capacity
Charge Cut-off Voltage	3.65V
Discharge Cut-off Voltage	2.3V
Standard Charge Current	0.5C
Standard Discharge Current	0.5C
Max Continuous Charge Current	1C
Max Continuous Discharge Current	1C
Max Pulse Discharge Current	2C
Internal Resistance (1KHz)	≤0.5mΩ
Operating Temperature	Charge: 0℃ ~ 60℃
Operating Temperature	Discharge: -20℃ ~ +60℃
Storage Temperature	0℃ ~ 35℃	For 1 year

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
