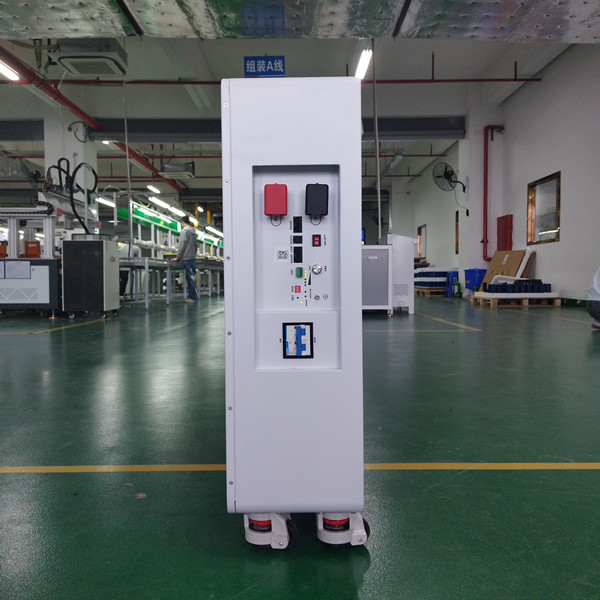

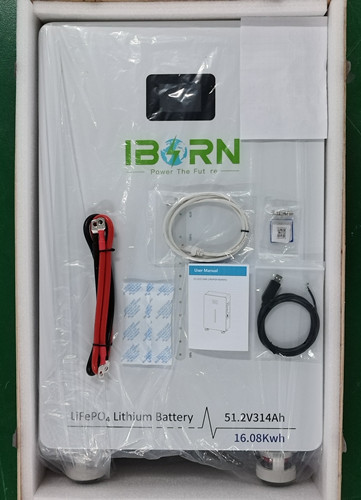

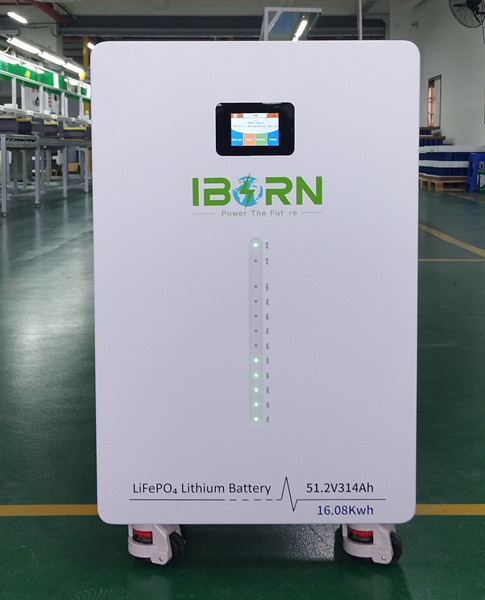

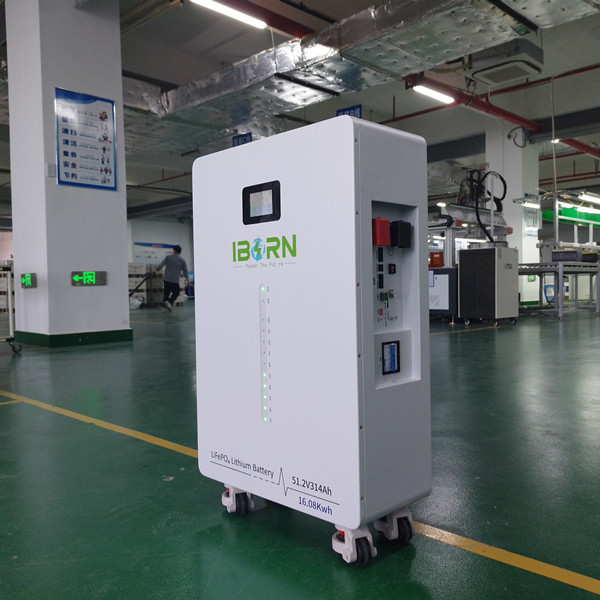

Name: 51V 314Ah 16Kwh Home Energy Storage Lithium Battery
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Dimensions: 500*235*820mm
Warranty: 5 years
Certificate: CE， ROHS， UN38.3， IEC62133， etc.
Compatible with Goodwe， Deye， Growatt most inverter in the market

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	iBorn-51V314AH
Nominal Voltage	51V
Nominal Capacity	314Ah	Customized 10KWH/15KWH/20KWH/30KWH
Dimensions	500235820mm	LengthWidthHeight
Cycle Life	≥6000 times	80% DOD
Charge Cut-off Voltage	58.4V
Discharge Cut-off Voltage	42V
Standard Charge Current	100A
Max Charge Current	100A	Recommended: 50A
Standard Discharge Current	100A
Max Continuous Discharge Current	200A
Max Peak Discharge Current	400A
Operation Temperature	Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature	0℃~35℃
Internal Resistance	≤40mΩ
Communication Method	WIFI ,Bluetooth,RS485,RS232, CAN2.0
Housing Material	Metal shell	Protection class: IP65
Weight	Approx. 128KG
Protection	Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc.

-High and stable operating voltage

-Wide operating tempearture: -55℃~+85℃

-High energy density: More than 650Wh/Kg， about 3-10 times of other series lithium battery.

-Good sealing: hermetic glass-to-metal sealing

-Safety and energy saving， environmental protection and no harm

-More than 15-years service life

1).Residential Energy Storage (Solar + Storage): Paired with inverters to store excess solar power generated during the day for use at night, reducing grid reliance.
2).Backup Power/UPS: Provides uninterrupted power during outages for homes, businesses, medical facilities, and critical electronics.
3).Off-Grid Living: Used in off-grid solar setups to store electricity for consistent daily use, ideal for remote locations.
4).Industrial/Commercial Use: Used in telecom base stations, manufacturing, and commercial buildings for energy management.
5). Large RV/Marine Systems: Suitable for high-capacity energy needs in large vehicles or ships.

Highly Compatible with Various Inverters

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
