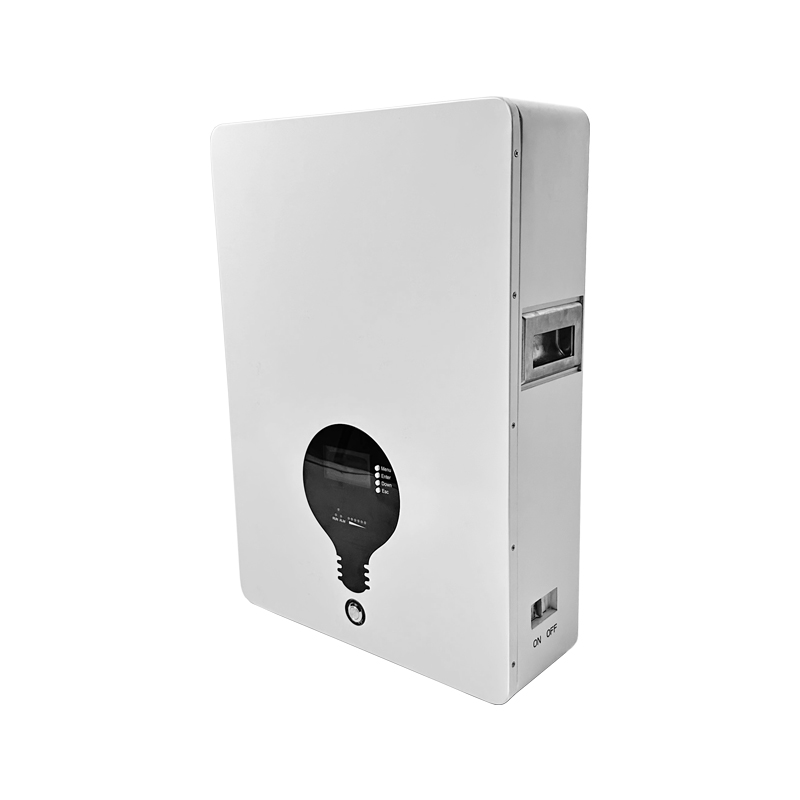

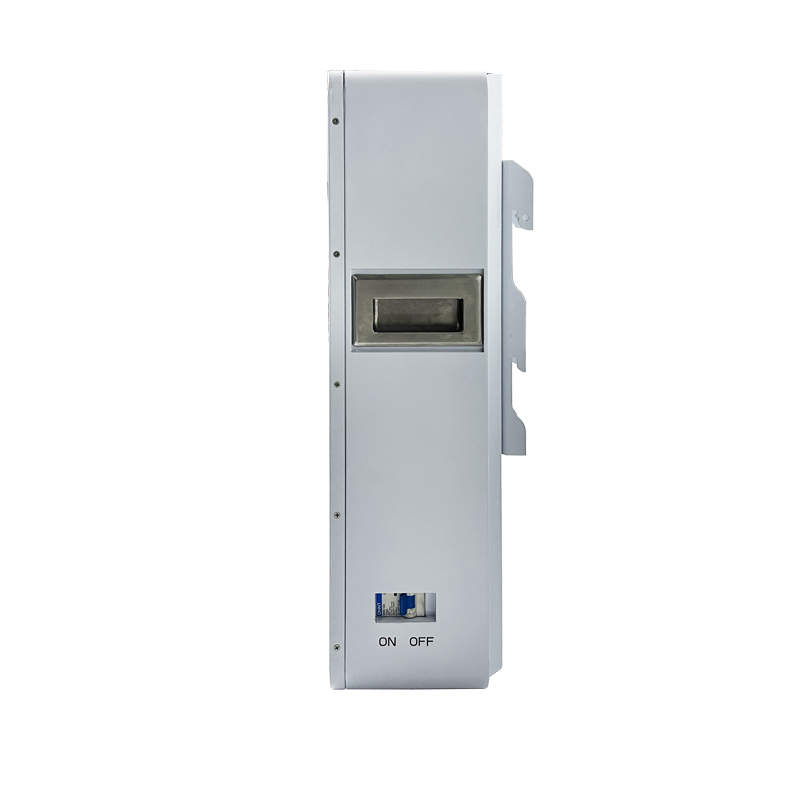

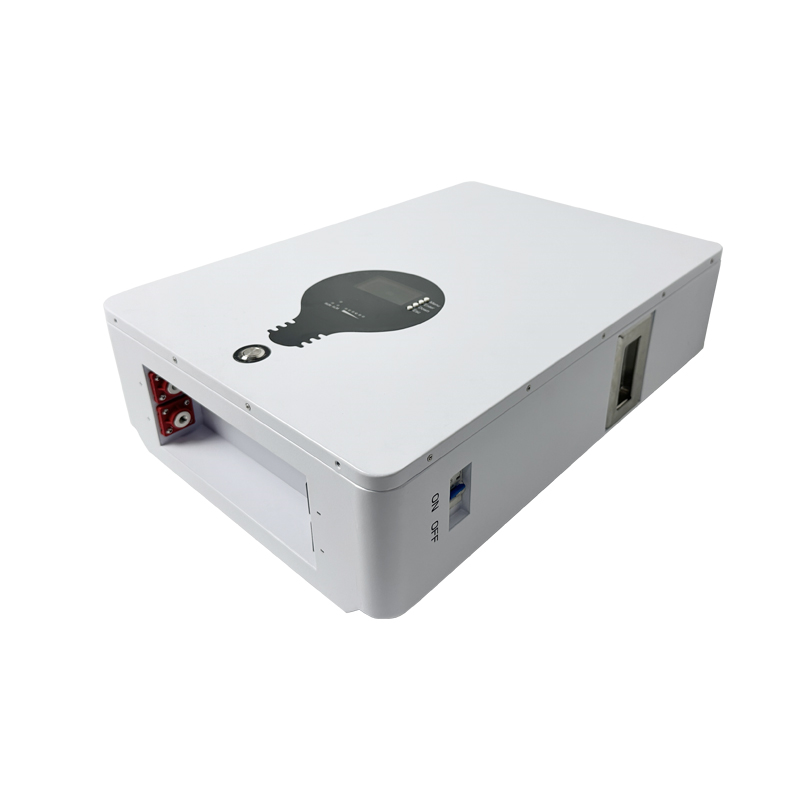

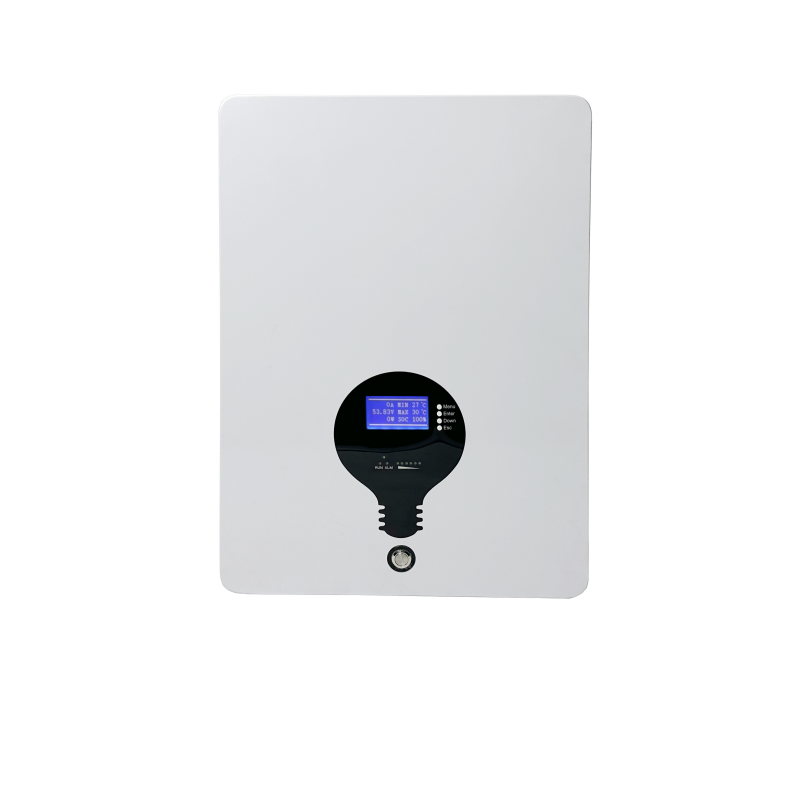

Name: 51.2V 100Ah Wall-Mounted LiFePO4 Battery Home Energy Storage Lithium Ion Battery Pack
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Energy: 5.12kWh
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Dimensions: 600*420*163mm
Warranty: 6 years
Communicate with DEYE /Afore /MEGAREVO/SOLIS/Growatt /LUXPOWER/Voltronics Goodwe/SMA/Victron/SOROTEC/MUST/etc

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	iBorn-WM51100	A grade LiFePO4 Battery
Nominal Voltage	51.2V
Nominal Capacity	100Ah	5.12kWh
Dimensions	600420163mm	not including handle and rear mounting bracket
Cycle Life	≥6000 times	@0.5C 80% DOD
Charge Cut-off Voltage	58.4V
Discharge Cut-off Voltage	40V
Standard Charge Current	35A
Max Charge Current	50A
Standard Discharge Current	50A
Continuous Discharge Current	100A
Peak Discharge Current	200A
Operation Temperature	Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature	-10℃~45℃
Internal Resistance	≤20mΩ

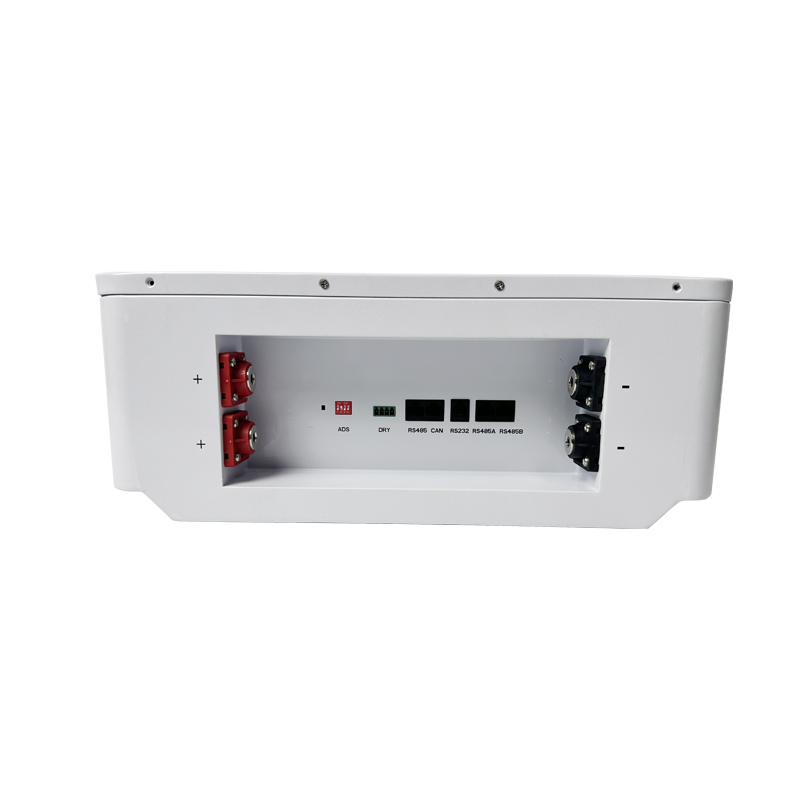

Communication Method	RS485, RS232,CAN
Housing Material	Sheet metal
Weight	Approx. 48kg
Protection	Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc.

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
