36V EBike Battery 10Ah-28Ah Lithium Battery Pack with USB Downtube Electric Bike Battery

Name: 36V EBike Battery 10Ah-28Ah Lithium Battery Pack with USB Downtube Electric Bike Battery
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Model: HL-G80-36V20.8Ah
Battery Material: NCM
Nominal Voltage: 48V
Nominal Capacity: 21Ah

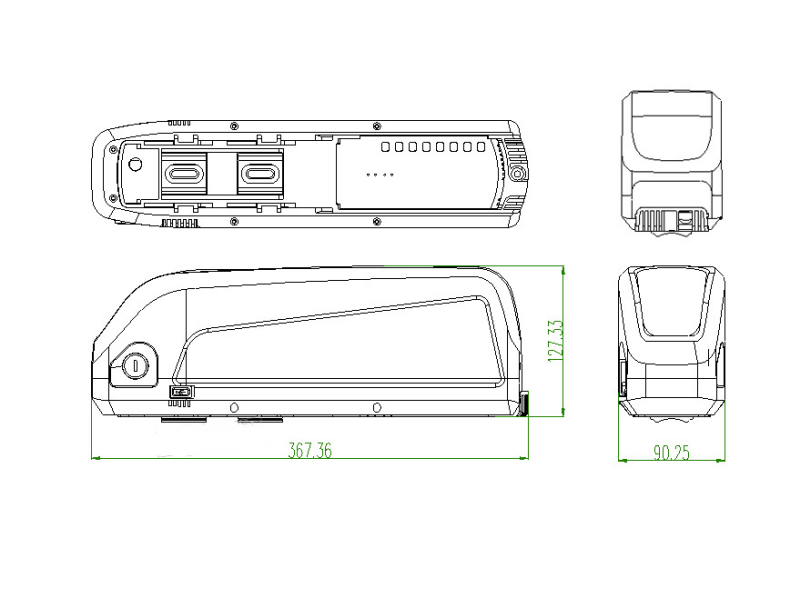

Dimensions: 368*90*127mm
Certification: CE， RoHS， UN38.3， MSDS， etc.
Warranty: 1 year

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	HL-G80-36V20.8Ah
Nominal Voltage	36V
Nominal Capacity	20.8Ah	10.4Ah/13Ah/15.6Ah/18.2Ah/20.8Ah/23.2Ah/25.6Ah/26.4Ah/28Ah Customized
Dimensions	36890127mm
Weight (approx.)	5.54kg
Cycle Life	≥1000 times	80% DOD
Charge Voltage	42V
Discharge Cut-off Voltage	27.5V
Max Charge Current	5A
Max Continuous Discharge Current	20A
Operating Temperature	Charge: 0℃ ~ 45℃
Operating Temperature	Discharge: -20℃ ~ 60℃
Storage Temperature	-10℃ ~ 40℃
Charging Port	XLR
Discharging Port	4-Pin	Upgradable to 5-pin/6-pin Gold-Plated Round Pin
BMS Function	Over-charge protection, over-discharge protection, over-current protection, over temperature, balancing, cooling.
Case Type	Hailong
Case Material	ABS+PC

-High Safety

-Real Capacity
-Low internal-resistance
-Stable Discharge Voltage
-High Consistency in Capacity&Voltage&Resistance
-No Fire，No Explosion，No Leakage

Bluetooth speaker， flashlight， solar light，intelligent door lock， gps tracker， parking device， medical device， POS machines， power tool， garden tool， sweeper， electric scooter， electric bike， outdoor power supply， etc

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
