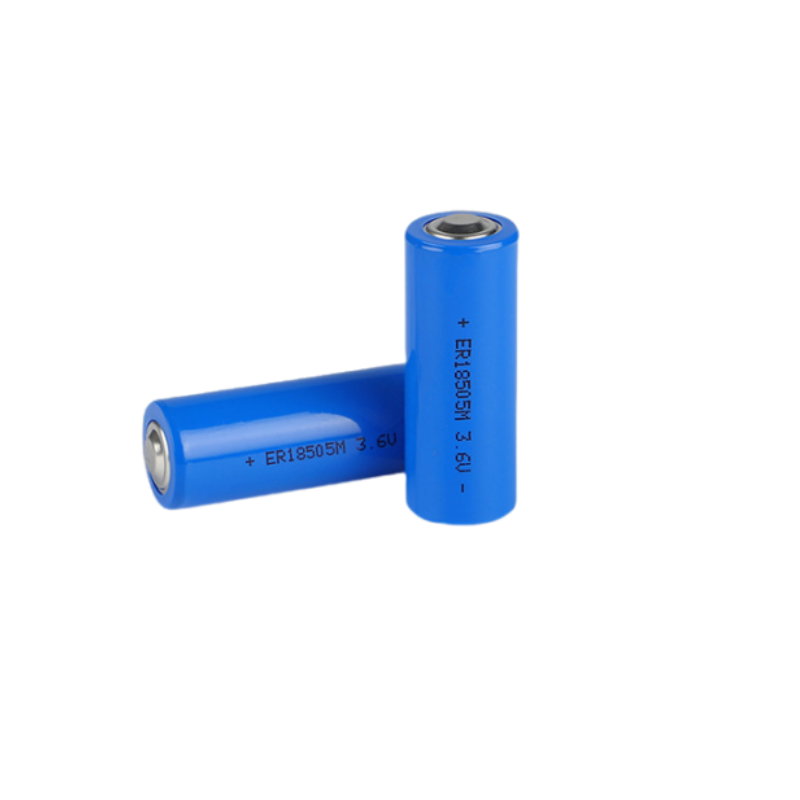

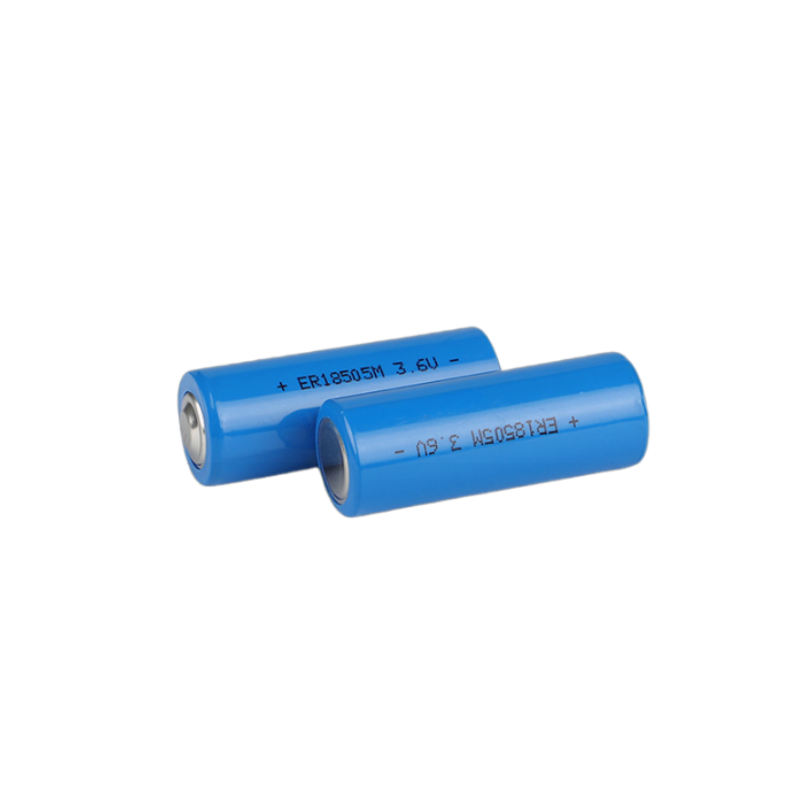

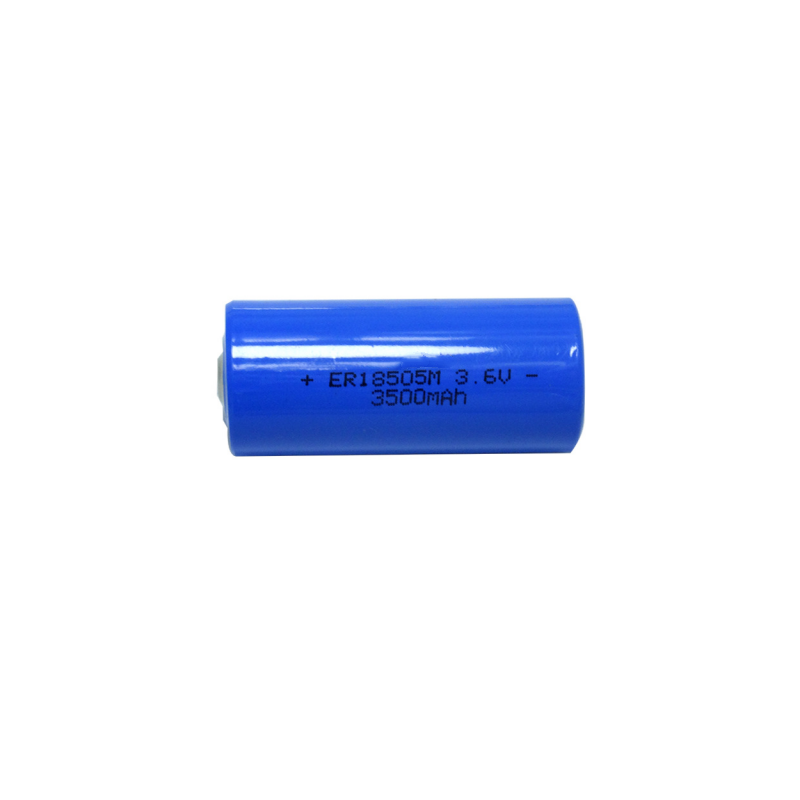

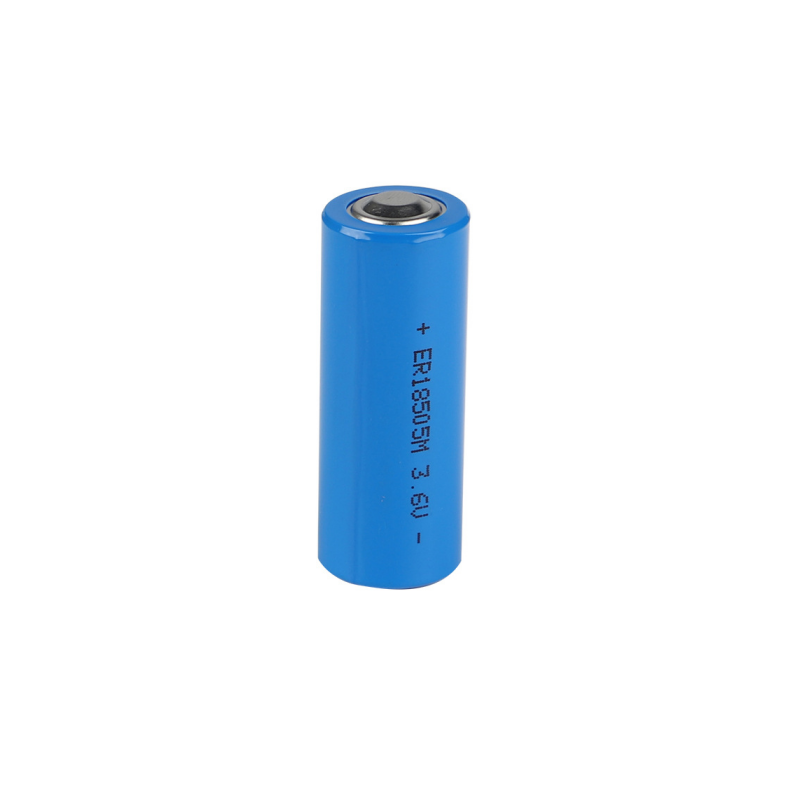

Name: 3.6V 3500mAh ER18505M Li-SOCl2 Battery for Security Device
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Brand: iBorn
Model: ER18505M
Nominal Voltage: 3.6V
Nominal Capacity: 3500mAh
Max Dimensions: 18.5*50.5mm
Operating Temperature Range: -55℃~+85℃
Meet CE， RoHS， UN38.3， IEC60086.4:2014

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	ER18505M	Li-SOCl2 battery
Nominal Voltage	3.6V
Nominal Capacity	3500mAh	Discharge at 5mA, +25°C, with a 2.0V cutoff. Capacity varies with discharge current, temperature, and cutoff voltage.
Max Dimensions	18.5*50.5mm
Weight	29g
Standard Discharge Current	5mA
Max Continuous Discharge Current	800mA
Max Pulse Discharge Current	1500mA
Discharge Cut-Off Voltage	2.0V
Operating Temperature Range	-55℃ ~ +85℃
Storage Life	≥10 years
Structure	Spiral Type
Lithium Metal Content	0.91g

-High and stable operating voltage

-Wide operating tempearture: -55℃~+85℃

-High energy density: More than 650Wh/Kg， about 3-10 times of other series lithium battery.

-Good sealing: hermetic glass-to-metal sealing

-Safety and energy saving， environmental protection and no harm

-More than 10 years storage life

Smart electricity meters, water meters, heat meters, gas meters, memory backup, clock power supply, data backup power supply, smoke alarm, temperature monitor, gps tracker, marine telemetry system, tire pressure monitoring system, ETC(non-parking toll system), automatic instrumentation equipment, oil Wells, mines, medical instruments, anti-theft alarm, wireless communication, sea lifesaving, aviation, aerospace, marine electronics.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate
