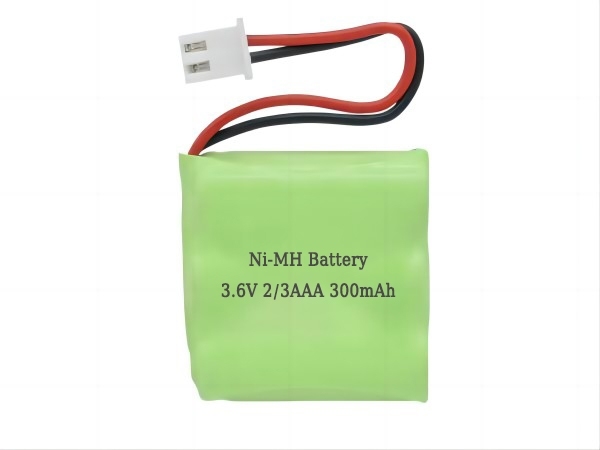

Name: 3.6V 2/3AAA 300mAh Rechargeable NI-MH Battery Pack
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011

Description

Product Advantages

Design Integration and Safety Features of the 2/3AAA NiMH Battery Pack

The small nimh battery pack is structurally optimized for modular placement within compact assemblies, providing system designers flexibility in device architecture. Its robust leakage-proof sealing safeguards internal chemistry from environmental exposure, promoting longevity and reducing failure rates. The proprietary assembly process by the custom ni mh battery pack manufacturer includes enhanced thermal management to maintain stable voltage output under fluctuating external temperatures. Additionally, imposing regulatory certifications from CE and UL confirm compliance with industry safety and environmental standards, ensuring suitability for a wide range of professional applications. This design approach reduces integration complexity and enhances product lifecycle reliability.

Operational Efficiency and User-Centered Performance Benefits

From a performance perspective, the 3.6V rechargeable nimh battery pack delivers consistent energy output with minimal capacity degradation over repeated cycles, supporting extended operational uptime and improved ROI. Its compatibility with standard and fast charging protocols offers flexibility in diverse maintenance environments, facilitating rapid recharging schedules for critical workflows. Portability combined with a lightweight format enhances utility in handheld and portable medical, communication, and monitoring devices. The battery pack supplier’s adherence to quality control ensures minimal variance in performance parameters, which is crucial for engineers calibrating sensitive electronics requiring stable supply voltages.

Charge Cut-Off Voltage: 4.5V

Discharge Cut-Off Voltage: 3.0V

Standard Charge: 60mA

Fast charge current: 150mA

Maximum Continuous Discharge Current: 900mA

Peak Discharge Current: 1500mA(<3S)

Size(L*W*H): 30*10.5*33mm Max

Weight: 21g Approx

Cycle life: > 500

Connector/Wire: TBD

1). Low self-discharge, long-term storage

2). High and low-temperature resistance, stable

3). Good sealing, safe and leak-proof

4). Wide application range

5). Mercury-free and environmentally friendly

Cordless telephone, Walk-Talkie, Two way radio, Electric shaver, electric toothbrush, Emergency lighting, Solar Lighting, Metering instruments, Security systems, Electric toys, Electric power tools, Medical device, Portable vacuum cleaner,etc.

iBorn NiMH Models

	Model	Size	Dimension (max)		Capacity	Nominal	Standard Charge		Rapid Charge		Reference Weight
			Diameter	Height	(mAH)	Voltage (V)	Current (mA)	Time	Current (mA)	Time
			(mm)	(mm)	(mAH)	Voltage (V)	Current (mA)	(H)	Current (mA)	(min)
AAA	2/3AAA300	2/3AAA	10.5	28.7	300	1.2	60	7	300	72	7
	AAA600	AAA	10.5	42.8	600	1.2	120	7	600	72	12
	AAA600H	AAA	10.5	44.5	600	1.2	120	7	600	72	12
	AAA700H	AAA	10.5	44.5	700	1.2	140	7	700	72	12
	AAA800H	AAA	10.5	44.5	800	1.2	160	7	800	72	13
	AAA900H	AAA	10.5	44.5	900	1.2	160	7	900	72	13
	AAA1000H	AAA	10.5	44.5	1000	1.2	180	7	1000	72	13
AA	2/3AA650	2/3AA	14.5	28.5	650	1.2	130	7	650	72	15
	4/5AA1200	4/5AA	14.5	43.3	1200	1.2	240	7	1200	72	23
	AA600	AA	14.5	49.1	600	1.2	120	7	600	72	24
	AA800H	AA	14.5	50.4	800	1.2	160	7	800	72	24
	AA1000	AA	14.5	49.1	1000	1.2	200	7	1000	72	24
	AA1200L	AA	14.5	49.1	1200	1.2	240	7	1200	72	24
	AA1300H	AA	14.5	50.4	1300	1.2	260	7	1300	72	24
	AA1500L	AA	14.5	49.1	1500	1.2	300	7	1500	72	26
	AA1600H	AA	14.5	50.4	1600	1.2	320	7	1600	72	26
	AA1700L	AA	14.5	49.1	1700	1.2	170	14	510	240	27
	AA1800H	AA	14.5	50.4	1800	1.2	180	14	540	240	28
	AA2000H	AA	14.5	50.4	2000	1.2	200	14	600	240	28
	AA2100L	AA	14.5	50.4	2100	1.2	210	14	630	240	29
	AA2200H	AA	14.5	50.4	2200	1.2	220	14	660	240	29
	AA2300H	AA	14.5	50.4	2300	1.2	230	14	690	240	30
	AA2400H	AA	14.5	50.4	2400	1.2	240	14	720	240	30.5
	AA2500H	AA	14.5	50.4	2500	1.2	250	14	750	240	31
	AA2600	AA	14.5	50.4	2600	1.2	260	14	780	240	31.5
	AA2700	AA	14.5	50.4	2700	1.2	270	14	810	240	32
A	2/3A1200	2/3A	17	28.5	1200	1.2	120	14	360	240	32
	4/5A1800	4/5A	17	43.2	1800	1.2	180	14	540	240	32
	A2100	AR(2)	17	50.3	2100	1.2	210	14	630	240	38
	4/3A3600	4/3A	17	67.3	3600	1.2	360	14	1080	240	53
18	18670	18670	18.5	67	3800	1.2	380	14	1140	240	53
18	18720	18720	18.5	72	4500	1.2	450	14	1350	240	53
SC	SC2800	SC	23	42.8	280	1.2	280	14	840	240	56
	SC3000	SC	23	42.8	3000	1.2	300	14	900	240	60
	SC3600	SC	23	42.8	3600	1.2	360	14	1080	240	64
C	C4000H	C	26	50.4	4000	1.2	400	14	1200	240	73
D	D8000	D	33	60.3	8000	1.2	800	14	2400	240	157
	D9000H	D	33	60.3	9000	1.2	900	14	2700	240	167
	D10000	d	33	60.3	10000	1.2	1000	14	3000	240	190
F	F13000	F	32.4	90	13000	1.2	1300	14	3900	390	205
9V	9V 220	9V	26.515.648.5		220	1.2	22	14	88	180	40
9V	9V 300	9V	26.515.648.5		300	1.2	30	14	120	180	44

Use Scenarios

Powering Portable Communication Devices in Industrial Settings

In the telecommunications industry, devices such as walkie-talkies and cordless phones rely on compact, durable power sources to maintain extended communication in demanding operational environments. The 2/3AAA nimh battery pack serves in this role by delivering stable 3.6V output and rapid recharge capability, essential for reducing downtime in critical field operations. The battery’s resistance to temperature extremes and certified safety features align with telecommunications compliance standards, ensuring operational reliability. Integration is streamlined due to its standardized form factor, allowing device manufacturers and service providers to deploy reliable, rechargeable batteries that sustain high-current draw scenarios typical in emergency and industrial communications equipment.

Battery Solutions for Medical and Emergency Lighting Equipment

Emergency lighting systems and portable medical devices operate in environments where power stability and longevity are paramount for safety and efficacy. The 3.6V rechargeable nimh battery pack provides a mercury-free, leak-proof energy source designed to endure frequent charge-discharge cycles and environmental stressors without performance compromise. Its rated capacity and discharge current are calibrated to meet stringent requirements for backup power systems, ensuring consistent illumination or device operation during outages. The custom ni mh battery pack manufacturer’s quality assurance processes ensure each pack conforms to CE and RoHS standards, enabling seamless integration with critical healthcare and safety infrastructure systems where uninterrupted power supply is a regulatory mandate.

FAQ

What types of devices are compatible with your 3.6V 2/3AAA 300mAh rechargeable Ni-MH battery pack?

Our battery pack is suitable for a wide range of portable electronics including cordless telephones, walk-talkies, electric shavers, emergency lighting, solar lights, and medical devices. This versatility makes it a reliable option for many industrial and commercial applications requiring a stable 3.6V rechargeable NiMH battery pack.

Can you provide customized battery packs according to specific requirements?

Yes, as a professional battery pack supplier, we offer customization services to meet different size, capacity, and connector needs. Our manufacturing capacity and engineering expertise allow us to deliver tailor-made Ni-MH battery solutions designed to suit your project’s technical specifications and operational demands.

What are the recommended charging methods for this Ni-MH battery pack?

We recommend charging the battery pack using standard chargers at 60mA or fast chargers at up to 150mA. Our battery supports both standard and fast charging protocols, ensuring efficient recharging while maintaining safety and extending cycle life.

How do you ensure the safety and environmental standards of your Ni-MH battery packs?

We manufacture our batteries with mercury-free materials and employ excellent sealing technology to prevent leakage. Our products comply with CE, RoHS, REACH, and UL certifications, reflecting our commitment to safety, durability, and environmental responsibility as a reliable custom Ni MH battery pack manufacturer.

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
