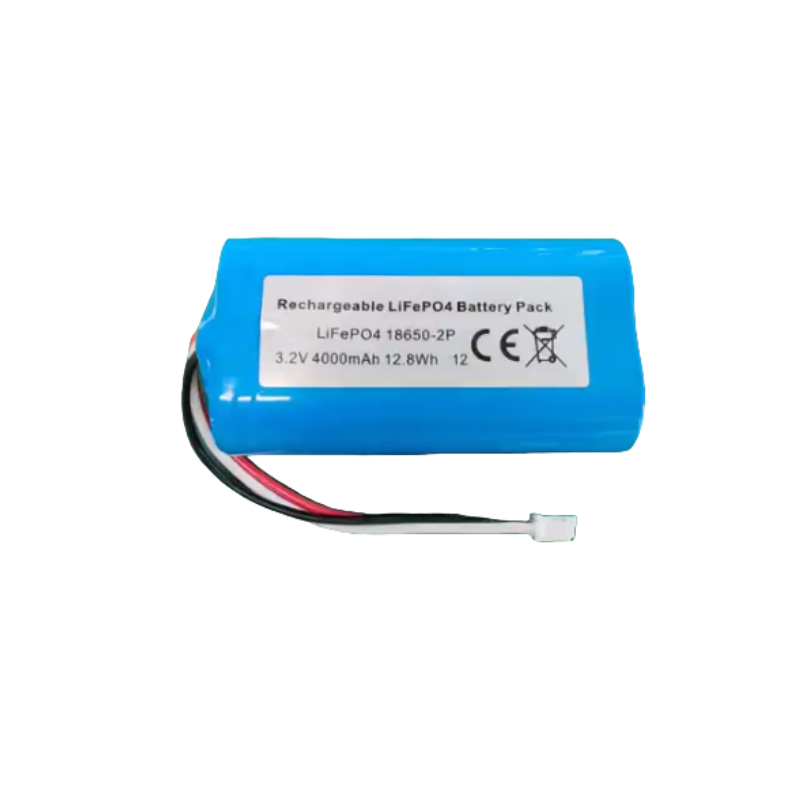

Name: 18650 1S2P 3.2V 4000mAh LiFePO4 Battery Pack
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Model: IFR18650-1S2P
Nominal Capacity: 4000mAh
Nominal Voltage: 3.2V
Max Dimensions: 20*39*68mm
Certificate: CE， ROHS， UN38.3， IEC62133， etc.
Warranty: 3 years

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	19.2V66Ah	LiFePO4 Battery
Nominal Voltage	19.2V
Nominal Capacity	66Ah	Standard discharge @0.2C after standard charge
Dimensions	152x169x235mm	LxWxH
Cycle Life	≥6000 times	≥80% of the initial capacity
Housing Material	Epoxy Board+PVC
Terminal Type	Cable
Charge Cut-off Voltage	21.9V
Discharge Cut-off Voltage	15V
Standard Charge Current	6A
Max Charge Current	10A
Standard Discharge Current	6A
Max Continuous Discharge Current	10A
Peak Discharge Current	30A	≤5s
Operation Temperature	Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature	-20℃~25℃	12 months
	-20℃~35℃	3 months
	-20℃~45 ℃	1 month
Internal Resistance	≤100mΩ
Weight	Approx. 10kg
Protection	Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc.

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
