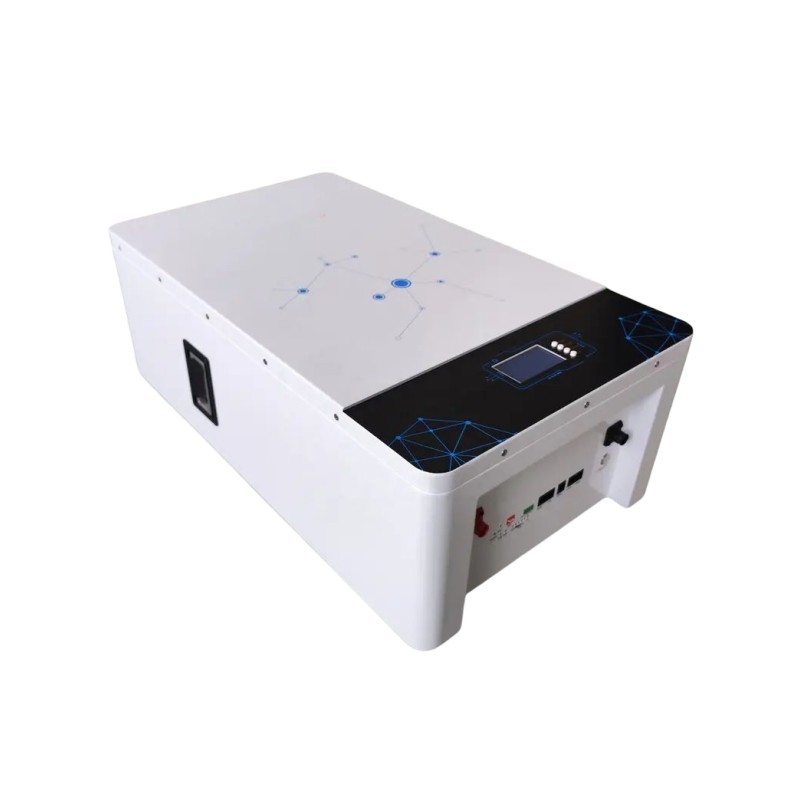

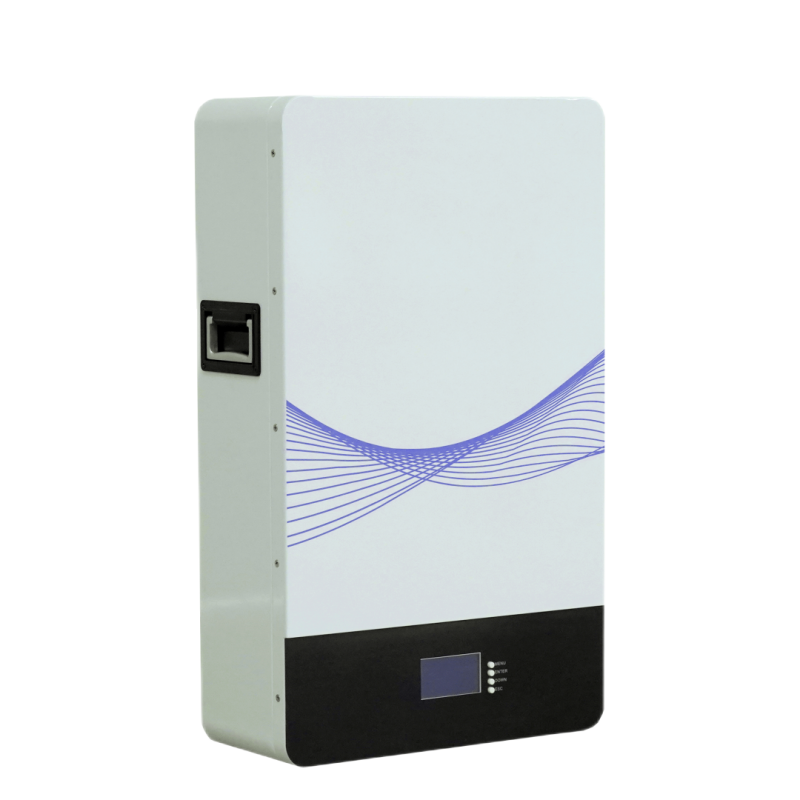

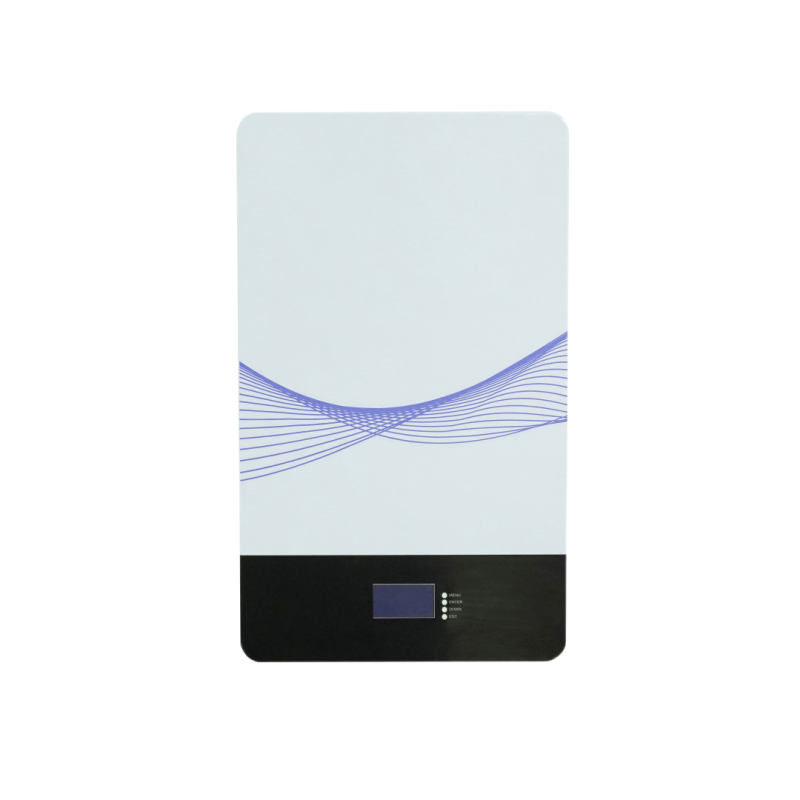

Name: 10kWh Home Energy Storage Battery | 51.2V 200Ah LiFePO4 Wall-Mounted System
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Elevate your home energy solutions with our 10kWh LiFePO4 Home Energy Storage Battery. This wall-mounted system offers a robust 51.2V 200Ah capacity， designed to provide reliable， long-lasting power with over 6000 life cycles.

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	iBorn-WM10KWH
Nominal Voltage	51.2V
Nominal Capacity	200Ah	Customized 5KWH/10KWH/15KWH
Dimensions	715415250mm	HeightWidthDepth
Cycle Life	≥6000 times	@0.5C 80% DOD
Charge Cut-off Voltage	58.4V
Discharge Cut-off Voltage	44.8V
Standard Charge Current	50A
Max Charge Current	100A	Recommended: 50A
Standard Discharge Current	50A
Max Continuous Discharge Current	100A
Max Peak Discharge Current	200A
Operation Temperature	Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature	0℃~35℃
Internal Resistance	≤35mΩ
Communication Method	RS485, RS232,CAN
Housing Material	Sheet metal	Protection class: IP21
Weight	Approx. 89kg
Protection	Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc.

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report
