LiSOCL2 battery for smart meters

Li-SOCl2 battery features: 1).High operating voltage, stable during most of the application lifetime;2).Superior shelf life and reliability: Over 10 years of shelf life if stored at room temperature;3,) Energy type consists of a bobbin structure that is best suited for a low discharge current.4.) Self-discharge rate of less than 1% per year.

Case Details

Li-SOCl2 battery (ER Battery,non-chargeable) can provide extremely-long service life in nominal temperature and be operated over a wide range of temperatures(-55°C to +85°C).

Lisocl2 battery Features:

1. High energy density

2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3~3.6V).

3. Wide range of operating temperature(-55°C~+85°C).

4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.

5. Long operating time (over 10 years) for continuous low current discharge with medium current pulses.

6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).

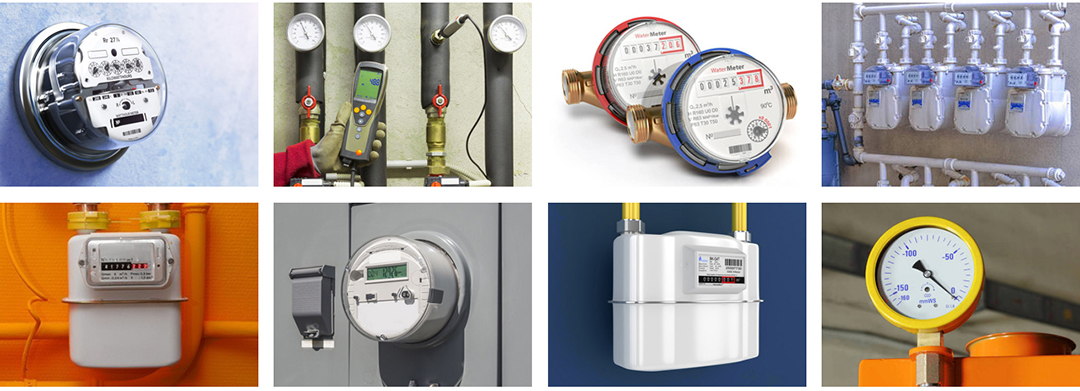

Applications include:

Meter & AMR (Automated Meter Reading), Utility Metering;

Medical Electronics, Memory Backup, Tracking Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices;

Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments;

Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.

Model		Dimensions	Weight	Normal Voltage	Normal Capacity	Standard Discharge Current	Max. Current (mA)
Model NO.	IEC Size	mm	g	V	mAh	mA	Continuous	Pulse
Cylindrical Battery (Bobbin)
ER10250	–	Φ10.4x25.0	4	3.6	400	0.5	5	10
ER10280	AAA	Φ10.4x28.0	6	3.6	450	0.5	10	20
ER10450	AAA	Φ10.6x45.0	9	3.6	800	0.5	25	60
ER13150	–	Φ13.5x15.7	7	3.6	450	0.5	10	20
ER13170	–	Φ13.5x17.8	7	3.6	500	0.5	10	20
ER14250	1/2AA	Φ14.5x25.2	11	3.6	1200	0.5	20	50
ER14335	2/3AA	Φ14.5x33.5	13	3.6	1650	1.3	30	70
ER14505	AA	Φ14.5x50.5	19	3.6	2600	1	50	100
ER17335	2/3A	Φ17x33.5	18	3.6	2100	1	50	100
ER17505	A	Φ17.0x50.5	24	3.6	3600	1	70	150
ER18505	–	Φ18.5x50.5	29	3.6	4100	2	80	150
ER20505	–	Φ20.0x50.5	35	3.6	4400	1.2	120	250
ER26500	C	Φ26.2x50.5	53	3.6	9000	3	100	200
ER261020	CC	Φ26.2x102.0	100	3.6	15000	5	250	500
ER34615	D	Φ34.2x61.5	105	3.6	19000	3	150	300
ER341245	DD	Φ34.2x124.5	200	3.6	35000	2	200	400
ER9V	–	Φ16.926.348.6	40	10.8	1200	0.5	40	80
Cylindrical Battery (Spiral)
ER14250M	1/2AA	Φ14.5x25.0	10	3.6	800	2	100	200
ER14335M	2/3AA	Φ14.5x33.5	14	3.6	1200	3	400	800
ER14505M	AA	Φ14.5x50.5	22	3.6	2100	4	400	800
ER17335M	2/3A	Φ17.5x33.5	23	3.6	1700	4	300	1000
ER17505M	A	Φ17.5x50.5	28	3.6	2800	3	400	1000
ER18505M	-	Φ18.5x50.5	30	3.6	3200	10	500	1500
ER26500M	C	Φ26.2x50.0	53	3.6	7000	10	1000	2000
ER34615M	D	Φ34.2x61.5	108	3.6	14000	20	2000	4000
